IPCOP configuration

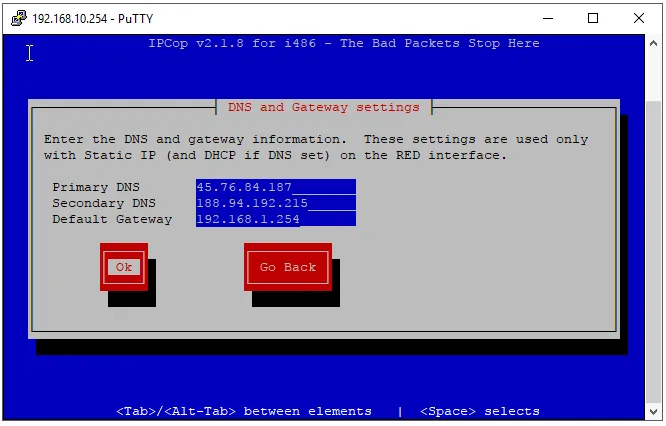

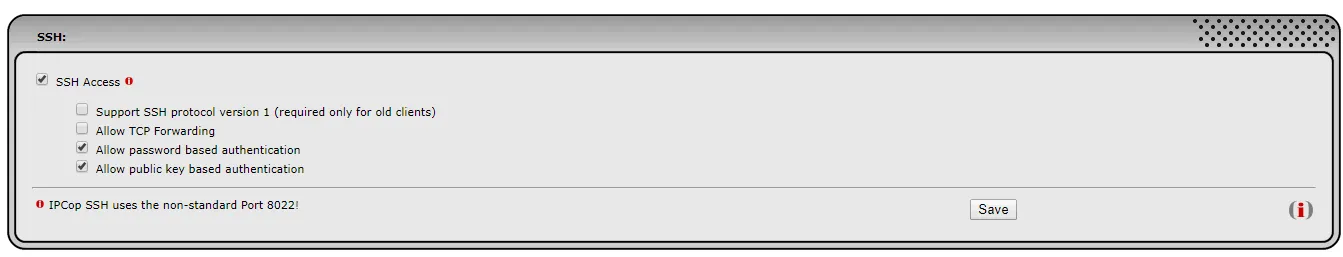

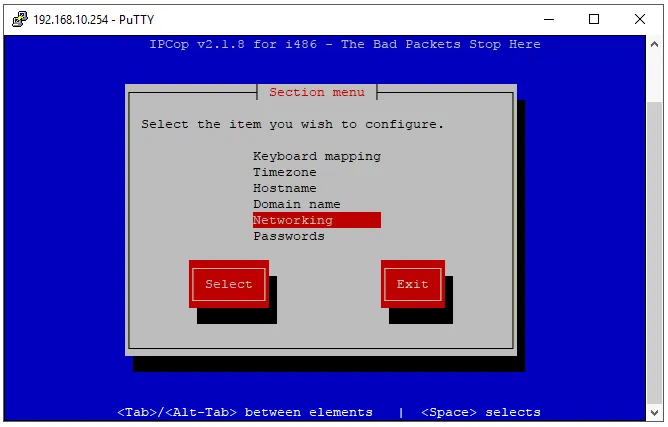

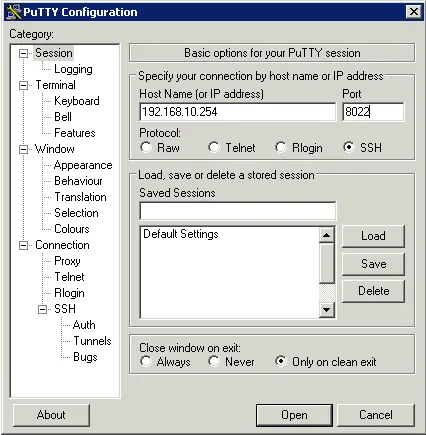

filter configuration on ipco if you have not yet registered for the service you can do so by clicking on the following link if you have not yet registered for the service you can do so by clicking on the following link connect to the control panel by entering the ip address of the ipcop in the address bar of any browser please note type the address as follows https //indirizzoip 8443 then log in by entering your credentials first you need to change the dns used by the ipcop (red network) to do this click on \[ system ], then open the \[ ssh access ] menu check the ssh access item and click on the \[ save ] button to apply the changes to access the console, using the ssh protocol , you can use the putty software ( ( ) then open the putty software and enter the ip address of the ipcop (green network) inside the field and 8022 in the port field then click on \[ open ] to open the console log in with your root credentials and type the command setup then click the enter key, and then a new page with a setup wizard will open select the networking item and click on the \[ select ] button navigate to the dns and gateway settings item and click on the \[ select ] button enter the address 185 236 104 104 in the primary dns field and 185 236 105 105 in the secondary dns field click on the \[ ok ] button and wait for the network reconfiguration procedure to complete you can then close the putty program please note to check if the dns have been set correctly click on \[ status ], in the ipcop web panel , and then open the \[ network status ] menu look for the red dns configuration item and check if the dns are the correct ones at this point we need to configure ipcop so that we can authenticate with our servers then open the \[ services ] menu and then click on \[ dynamic dns ] as the service, choose dyndns org important you do not need to be registered with the dyndns org service as our servers redirect the request directly to themselves then click on the \[ add ] button to proceed with the service configuration then configure it as follow enabled check the item to enable the service hostname enter any name you like for example, the word hostname domain enter a domain of your choice for example domain com username enter the email/username to register for the service password enter your password please note the password was emailed to the address specified when registering for the cloud filter finally, click \[ update] to save image alt text at this point you can enable the dhcp server so that it automatically assigns network parameters, including our dns, to the various internal devices to configure the dhcp server , open the \[ services ] menu and then click on \[ dhcp server ] fill in the various fields as follows enabled put a checkmark to enable the service start address enter the first ip address in the dhcp range end address enter the last ip address of the dhcp range default lease time (mins) set the dhcp lease time (in minutes) primary dns enter the address 185 236 104 secondary dns enter the address 185 236 105 105 click on the \[ save ] button to save the changes alternatively, the dns of the various devices within the network can be changed manually optional deny dns changes by users it is possible to increase security by denying the user the ability to browse unfiltered, as a result of changing the dns on their device to do this, proceed as follows open the \[ firewall ] menu and click on \[ firewall at this point you need to create rules to block all traffic on port 53 (dns service) , both tcp and udp , except those directed to our ips then click on the \[ outgoing traffic ] button to create a new rule see the image below to understand how to create the rule please note enter the ip 185 236 104 104 in the destination ip or net field then click \[ save ] to add the rule then create another rule, similar to the previous one, except the destination ip or net field must be 185 236 105 105 finally, you need to create an additional rule with the purpose of blocking all traffic on port 53 (dns), both tcp and udp see the image below to understand how to create the rule other ways to ask how to configure ipcop router ipcop router configuration how to
